When working with large and/or complex data models, ER/Studio Data Architect users may experience performance issues. These issues can lead to sluggishness, delays in response times, crashing of the tool, etc..
Slow response times when performing actions such as opening or saving models.
Lag or freezing when navigating through large data models.
High memory or CPU usage.
Steps to Improve This
Update to the latest version: Ensure Data Architect is updated to the latest version available, as updates often include performance improvements and bug fixes.

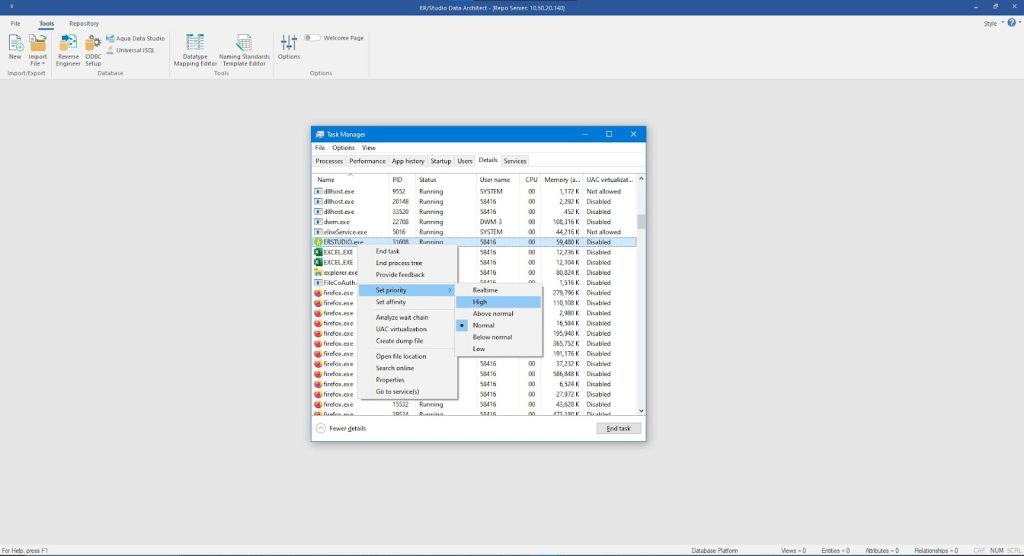

Set priority to High: Increase the priority for Data Architect in the Task Manager to High by right clicking on the process in the Details tab.
Optimize Model Size: Streamline data models by removing unnecessary objects, consolidating entities, and simplifying relationships.If you are going to use multiple Sub-model, then consider splitting them into multiple diagrams.
Limit number of open models: Keep the number of simultaneously open models to a minimum to conserve system resources.
Use circular layout: Make sure to use the circular layout when reversing a large model. Avoid using the hierarchicallayout when considering performance in Big Models.

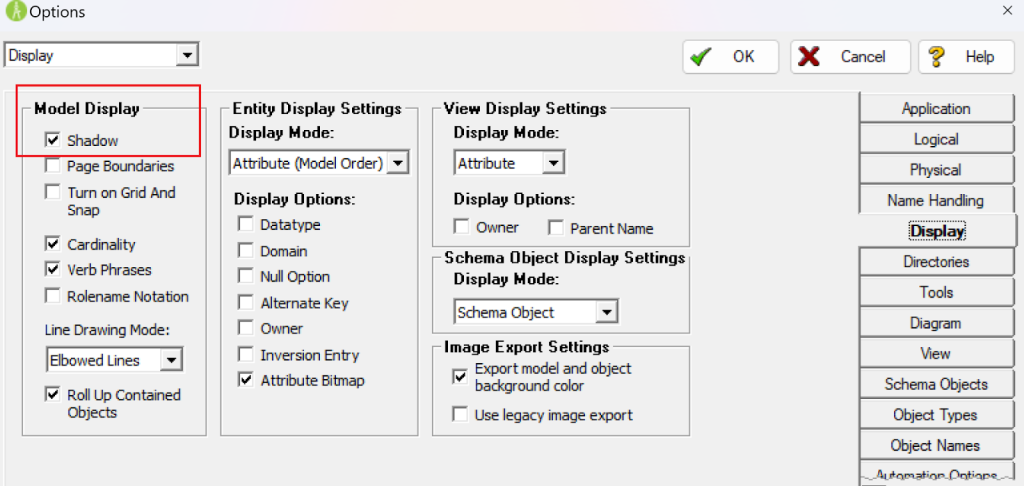

Disable shadows: Go to Tools > Options > Display and disable this option.
